Поднимаем OpenConnect SSL VPN сервер (ocserv) в docker для внутренних проектов

#############################################################

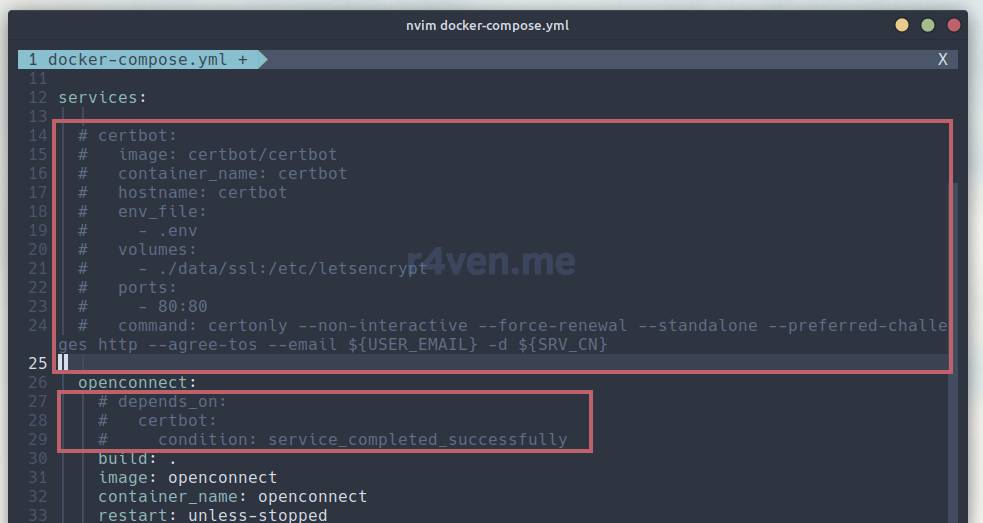

## при использовании домена для получения SSL сертификатов ##
## расскоментируйте сервис certbot и параметр depends_on   ##
## у сервиса openconnect + укажите свои значения вместо    ##
## *example* в файле docker-compose.yml                    ##
#############################################################

### установка и настройка сервера с помощью готового образа ###

# создание директории проекта
mkdir /opt/openconnect && cd /opt/openconnect

# копирование файла docker-compose.yml
curl -sSLO https://raw.githubusercontent.com/r4ven-me/openconnect/main/docker-compose.yml

# запуск OpenConnect сервера

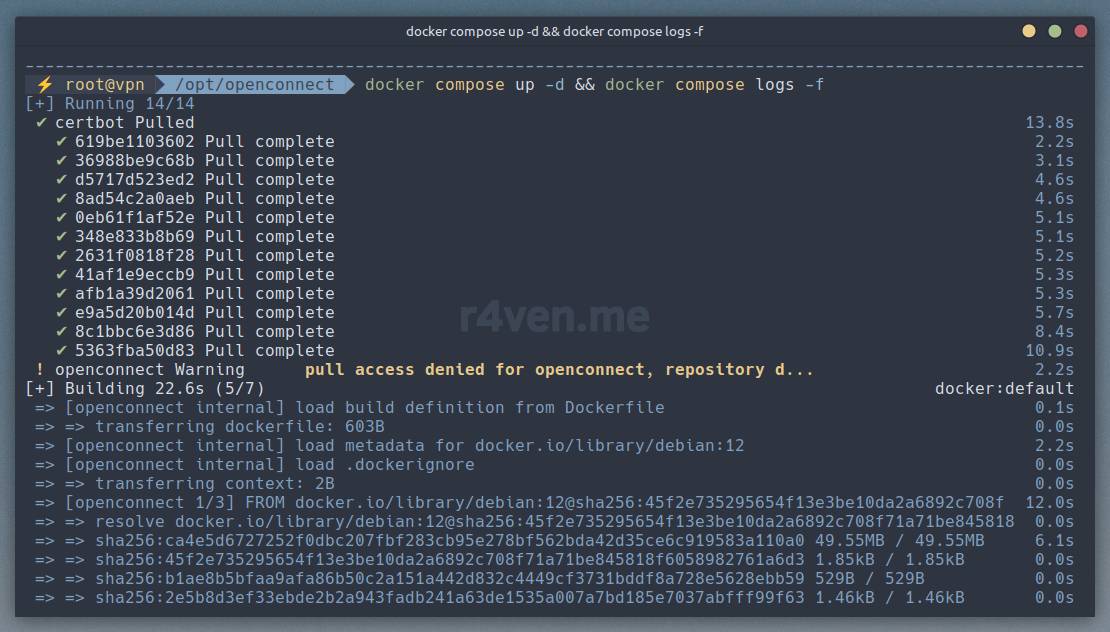

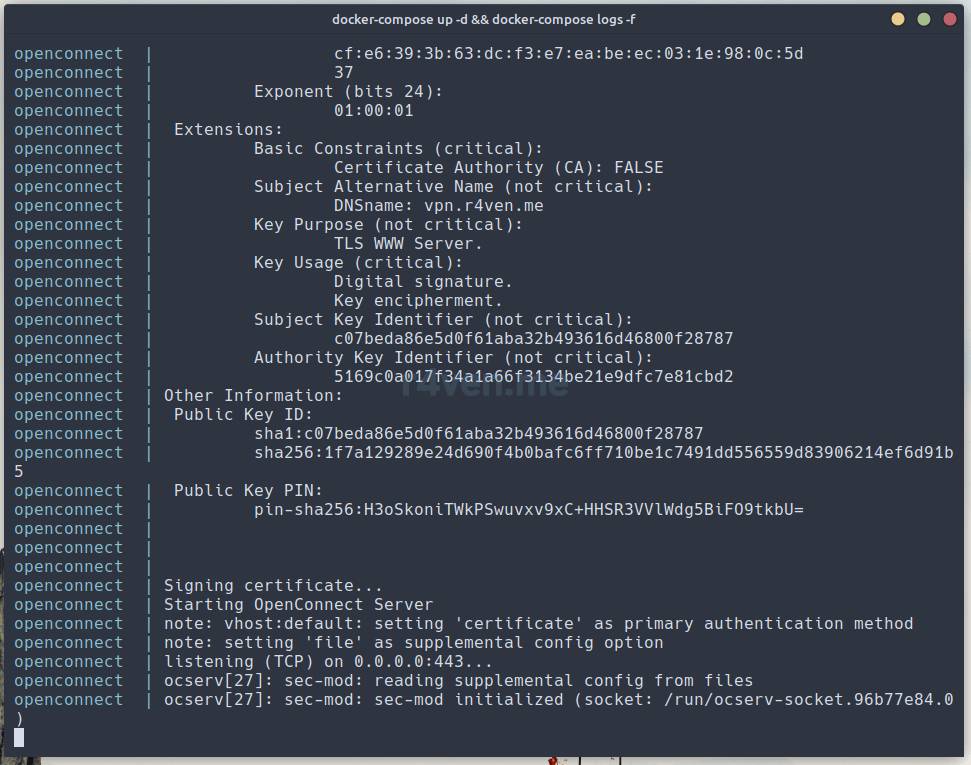

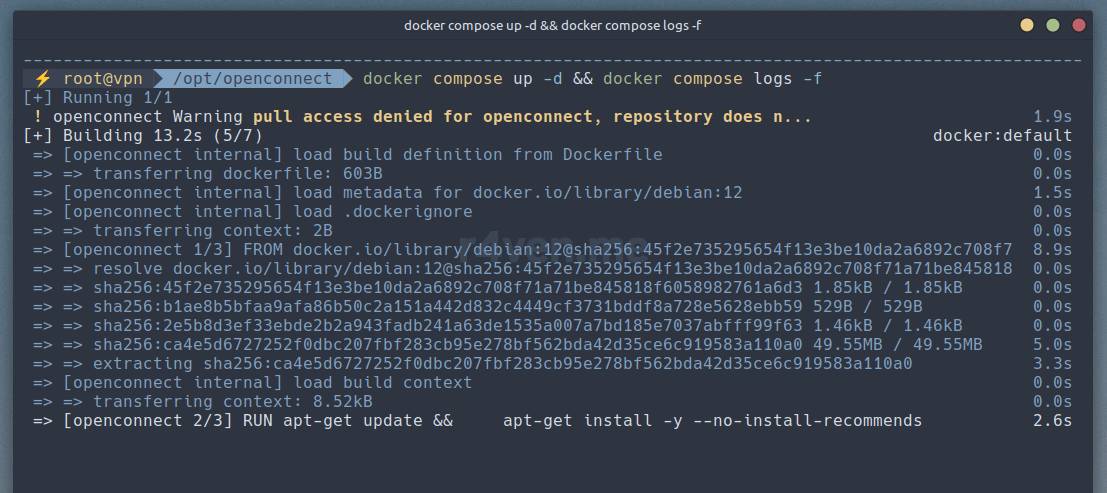

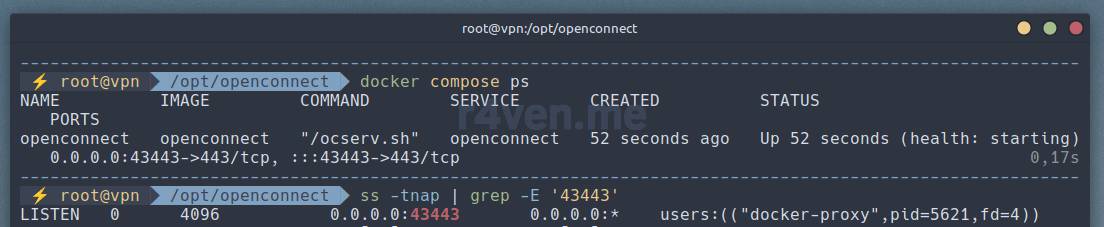

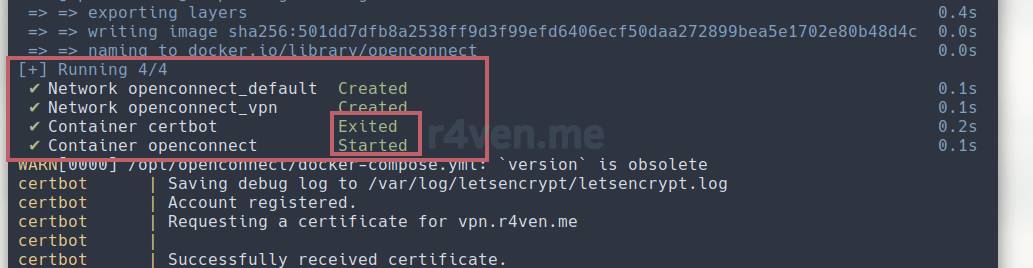

docker compose up -d && docker compose logs -f

# создание пользователя с id "exampleuser" и именем "Example User"

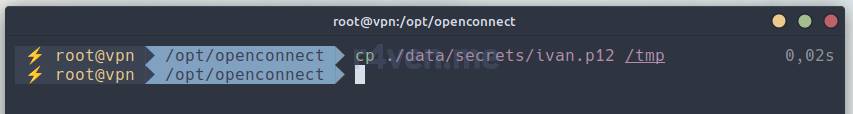

# файл сертификата .p12 будет создан в ./data/secrets

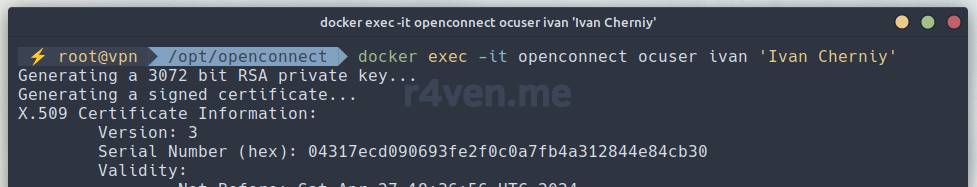

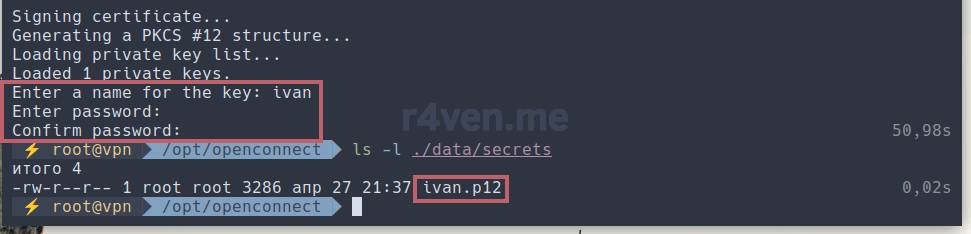

docker exec -it openconnect ocuser exampleuser 'Example User'

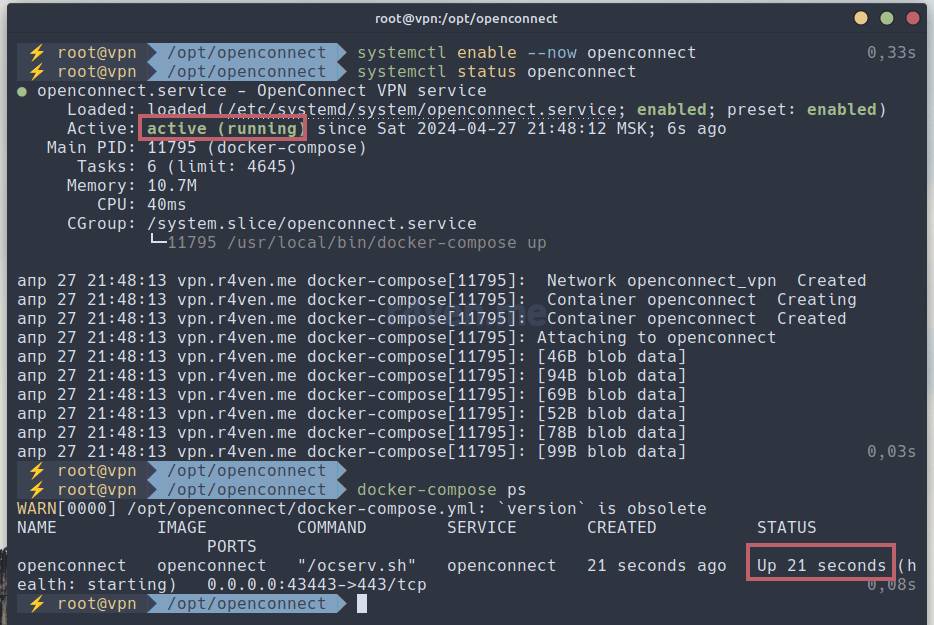

# настройка автозапуска с systemd

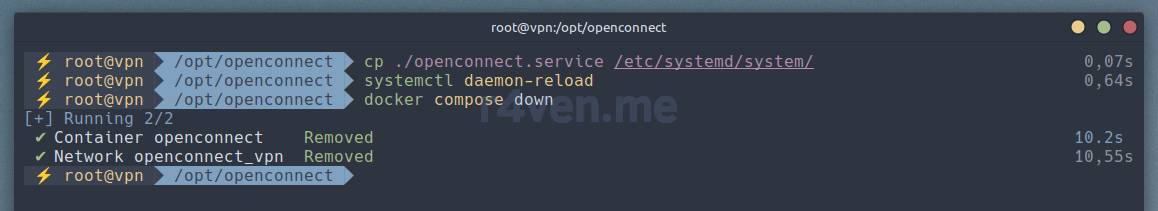

docker compose down
curl -fLo /etc/systemd/system/openconnect.service https://raw.githubusercontent.com/r4ven-me/openconnect/main/src/server/v1.3-sid/openconnect.service
systemctl daemon-reload
systemctl enable --now openconnect

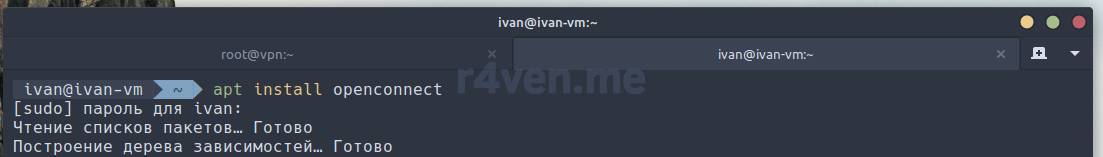

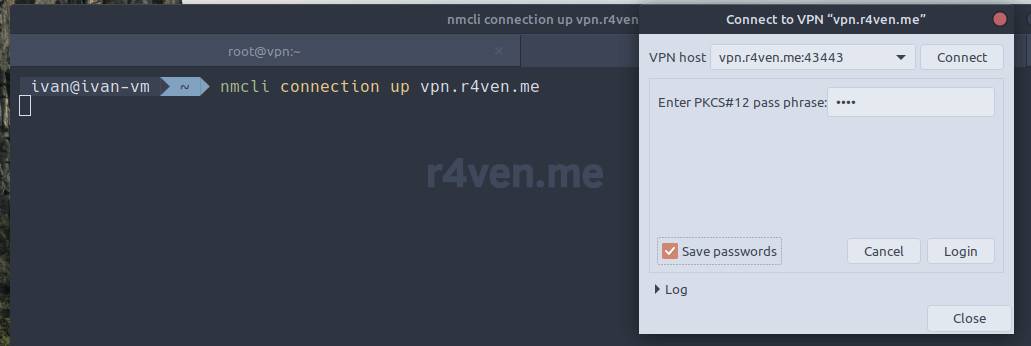

### пример подключения клиента с помощью утилиты openconnect ###

# без домена

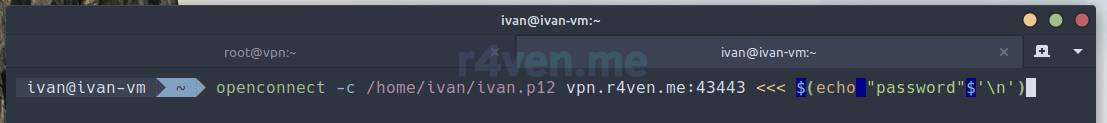

sudo openconnect -c /home/exampleuser/exampleuser.p12 12.345.67.89:43443 <<< $(echo "examplepassword"$'\n'yes$'\n')

# с доменом
sudo openconnect -c /home/exampleuser/exampleuser.p12 example.com:43443 <<< $(echo "examplepassword"$'\n')

sudo -s

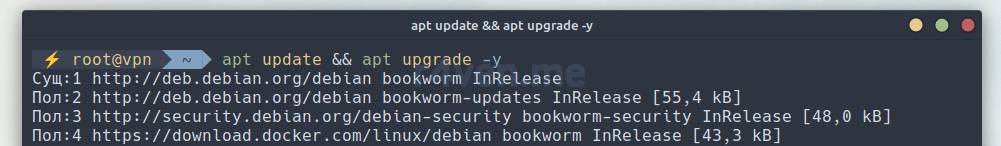

apt update && apt upgrade -y

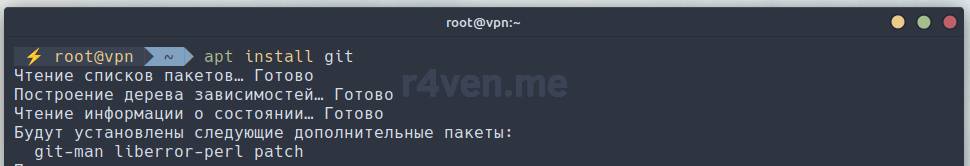

apt install git

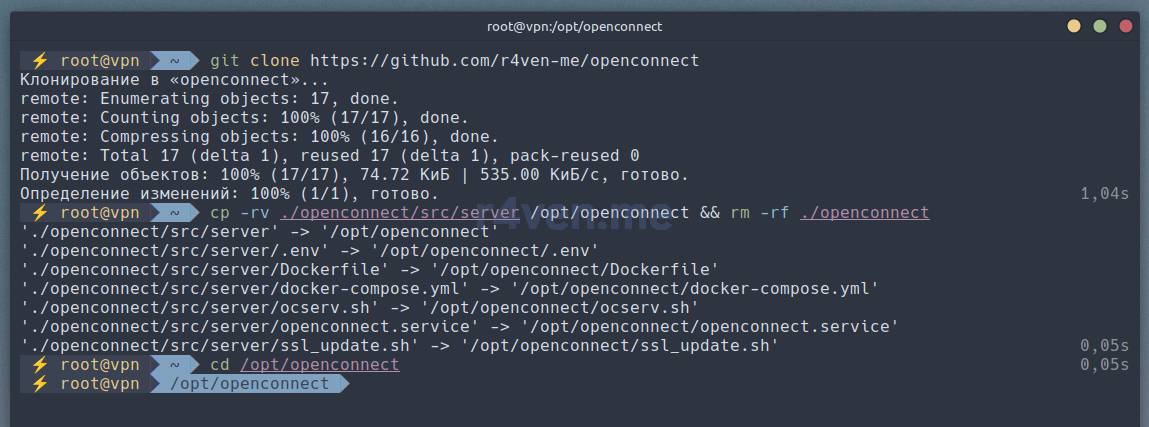

git clone https://github.com/r4ven-me/openconnect /tmp/openconnect

cp -rv /tmp/openconnect/src/server/v1.3-sid /opt/openconnect && rm -rf /tmp/openconnect

cd /opt/openconnect

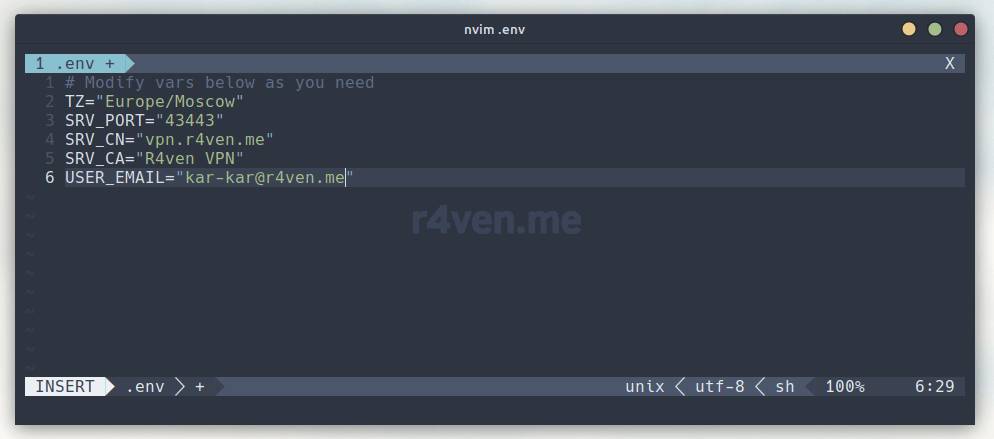

 1TZ="Europe/Moscow"
 2SRV_PORT="43443"
 3SRV_CN="example.com"
 4SRV_CA="Example CA"
 5USER_EMAIL="mail@example.com"

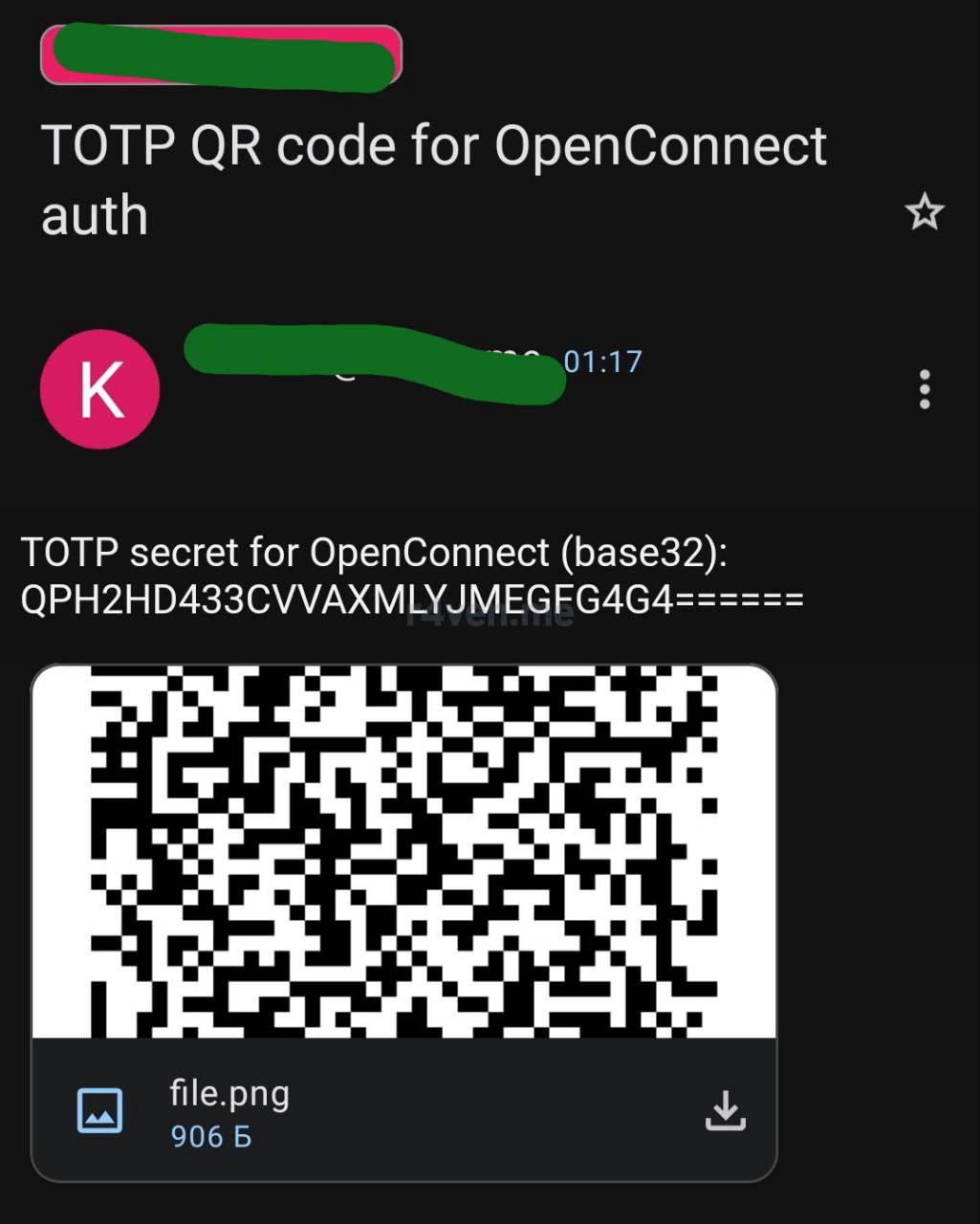

 6#OTP_ENABLE="true"
 7#OTP_SEND_BY_EMAIL="true"
 8#MSMTP_HOST="smtp.example.com"
 9#MSMTP_PORT="465"
10#MSMTP_USER="mail@example.com"
11#MSMTP_PASSWORD="SuPeRsEcReTpAsSwOrD"
12#MSMTP_FROM="mail@example.com"
13#OTP_SEND_BY_TELEGRAM="true"
14#TG_TOKEN="1234567890:QWERTYuio-PA1DFGHJ2_KlzxcVBNmqWEr3t"

 1---
 2
 3networks:
 4
 5  vpn:
 6    ipam:
 7      driver: default
 8      config:
 9        - subnet: 172.22.22.0/24
10          gateway: 172.22.22.1
11
12services:
13
14  certbot:
15    image: certbot/certbot
16    container_name: certbot
17    hostname: certbot
18    env_file:
19      - .env
20    volumes:
21      - ./data/ssl:/etc/letsencrypt
22    ports:
23      - 80:80
24    command: certonly --non-interactive --keep-until-expiring --standalone --preferred-challenges http --agree-tos --email ${USER_EMAIL} -d ${SRV_CN}
25
26  openconnect:
27    depends_on:
28      certbot:
29        condition: service_completed_successfully
30    build: .
31    image: openconnect
32    #image: r4venme/openconnect:v1.3-sid
33    container_name: openconnect
34    restart: unless-stopped
35    deploy:
36      resources:
37        limits:
38          cpus: '0.50'
39          memory: 200M
40    cap_add:
41      - NET_ADMIN
42    hostname: openconnect
43    env_file:
44      - .env
45    volumes:
46      - ./data:/etc/ocserv
47      #- /etc/passwd:/etc/passwd:ro
48      #- /etc/group:/etc/group:ro
49      #- /etc/shadow:/etc/shadow:ro
50    devices:
51      - /dev/net/tun:/dev/net/tun
52    ports:
53      - ${SRV_PORT}:443/tcp
54    networks:
55      vpn:
56        ipv4_address: 172.22.22.22

 1FROM debian:sid
 2
 3LABEL maintainer="Ivan Cherniy <kar-kar@r4ven.me>"
 4
 5ENV OCSERV_DIR="/etc/ocserv"
 6ENV CERTS_DIR="${OCSERV_DIR}/certs"
 7ENV SSL_DIR="${OCSERV_DIR}/ssl"
 8ENV SECRETS_DIR="${OCSERV_DIR}/secrets"
 9ENV SCRIPTS_DIR="${OCSERV_DIR}/scripts"
10ENV PATH="${SCRIPTS_DIR}:${PATH}"
11ENV SRV_CN="example.com"
12ENV SRV_CA="Example CA"
13ENV OTP_ENABLE="false"
14ENV OTP_SEND_BY_EMAIL="false"
15ENV OTP_SEND_BY_TELEGRAM="false"
16ENV MSMTP_HOST="smtp.example.com"
17ENV MSMTP_PORT="465"
18ENV MSMTP_USER="mail@example.com"
19ENV MSMTP_PASSWORD="PaSsw0rD"
20ENV MSMTP_FROM="mail@example.com"
21ENV TG_TOKEN="1234567890:QWERTYuio-PA1DFGHJ2_KlzxcVBNmqWEr3t"
22
23WORKDIR $OCSERV_DIR
24
25ARG DEBIAN_FRONTEND=noninteractive
26
27RUN apt update && \
28    apt install --yes --no-install-recommends \
29        tini \
30        ocserv \
31        gnutls-bin \
32        iptables \
33        iproute2 \
34        iputils-ping \
35        less \
36        ca-certificates \
37        xxd \
38        libpam-oath \
39        oathtool \
40        qrencode \
41        curl \
42        jq \
43        msmtp && \
44    apt autoremove --yes && \
45    apt clean --yes && \
46    rm -rf /var/lib/{apt,dpkg,cache,log}/*
47
48COPY ./ocserv.sh /
49
50ENTRYPOINT ["/ocserv.sh"]
51
52CMD ["/usr/bin/tini", "--", "/usr/sbin/ocserv", "--config", "/etc/ocserv/ocserv.conf", "--foreground"]
53
54HEALTHCHECK --interval=5m --timeout=3s \
55    CMD curl -k https://localhost:443/ || exit 1

  1#!/bin/bash
  2
  3# Some protection
  4set -Eeuo pipefail
  5
  6# Define default server vars if they are not set
  7SRV_CN="${SRV_CN:=example.com}"
  8SRV_CA="${SRV_CA:=Example CA}"
  9OTP_ENABLE="${OTP_ENABLE:=false}"
 10OTP_SEND_BY_EMAIL="${OTP_SEND_BY_EMAIL:=false}"
 11OTP_SEND_BY_TELEGRAM="${OTP_SEND_BY_TELEGRAM:=false}"
 12MSMTP_HOST="${MSMTP_HOST:=smtp.example.com}"
 13MSMTP_PORT="${MSMTP_PORT:=465}"
 14MSMTP_USER="${MSMTP_USER:=mail@example.com}"
 15MSMTP_PASSWORD="${MSMTP_PASSWORD:=PaSsw0rD}"
 16MSMTP_FROM="${MSMTP_FROM:=mail@example.com}"
 17TG_TOKEN="${TG_TOKEN:=1234567890:QWERTYuio-PA1DFGHJ2_KlzxcVBNmqWEr3t}"
 18
 19# Ocserv vars (do not modify)
 20OCSERV_DIR="/etc/ocserv"
 21CERTS_DIR="${OCSERV_DIR}/certs"
 22SSL_DIR="${OCSERV_DIR}/ssl"
 23SECRETS_DIR="${OCSERV_DIR}/secrets"
 24SCRIPTS_DIR="${OCSERV_DIR}/scripts"
 25
 26# Create certs dirs

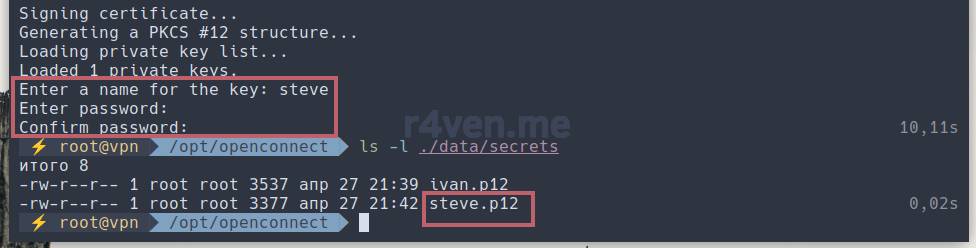

 27for sub_dir in "${OCSERV_DIR}"/{"ssl/live/${SRV_CN}","certs","secrets","scripts"}; do
 28    if [[ ! -d "$sub_dir" ]]; then
 29        mkdir -p "$sub_dir"
 30    fi
 31done
 32

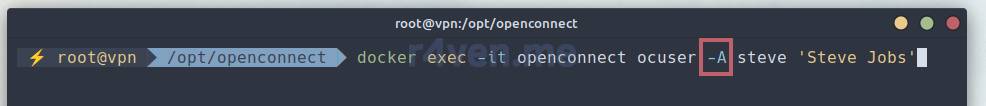

 33if [[ -r /usr/share/doc/ocserv/sample.config && ! -e "${OCSERV_DIR}"/sample.config ]]; then
 34    cp /usr/share/doc/ocserv/sample.config "${OCSERV_DIR}"/
 35fi
 36
 37# Create ocserv config file
 38if [[ ! -e "${OCSERV_DIR}"/ocserv.conf ]]; then
 39cat << _EOF_ > "${OCSERV_DIR}"/ocserv.conf
 40auth = "certificate"
 41#auth = "plain[passwd=${OCSERV_DIR}/ocpasswd]"
 42#auth = "plain[passwd=/etc/ocserv/ocpasswd,otp=/etc/ocserv/secrets/users.oath]"
 43#enable-auth = "certificate"
 44#enable-auth = "pam"
 45tcp-port = 443
 46socket-file = /run/ocserv-socket

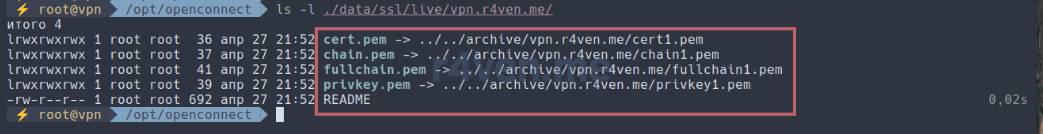

 47server-cert = ${SSL_DIR}/live/${SRV_CN}/fullchain.pem
 48server-key = ${SSL_DIR}/live/${SRV_CN}/privkey.pem
 49ca-cert = ${CERTS_DIR}/ca-cert.pem
 50isolate-workers = true
 51max-clients = 20
 52max-same-clients = 2
 53rate-limit-ms = 200
 54server-stats-reset-time = 604800
 55keepalive = 10
 56dpd = 120
 57mobile-dpd = 1800
 58switch-to-tcp-timeout = 25
 59try-mtu-discovery = false
 60cert-user-oid = 0.9.2342.19200300.100.1.1
 61tls-priorities = "NORMAL:%SERVER_PRECEDENCE:%COMPAT:-VERS-SSL3.0:-VERS-TLS1.0:-VERS-TLS1.1:-VERS-TLS1.3"
 62auth-timeout = 1000
 63min-reauth-time = 300
 64max-ban-score = 100
 65ban-reset-time = 1200
 66cookie-timeout = 600
 67deny-roaming = false
 68rekey-time = 172800
 69rekey-method = ssl
 70connect-script = ${SCRIPTS_DIR}/connect
 71disconnect-script = ${SCRIPTS_DIR}/disconnect
 72use-occtl = true
 73pid-file = /run/ocserv.pid
 74log-level = 1
 75device = vpns
 76predictable-ips = true
 77default-domain = $SRV_CN
 78ipv4-network = 10.10.10.0
 79ipv4-netmask = 255.255.255.0
 80tunnel-all-dns = true
 81dns = 8.8.8.8
 82ping-leases = false

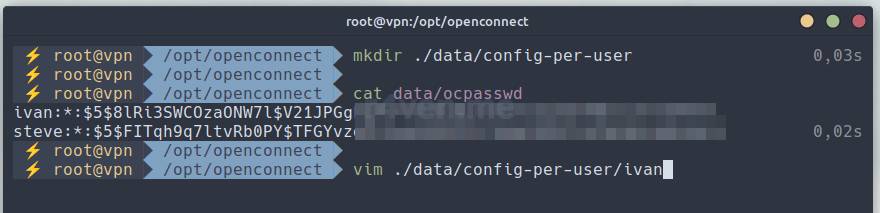

 83config-per-user = ${OCSERV_DIR}/config-per-user/
 84cisco-client-compat = true
 85dtls-legacy = true
 86client-bypass-protocol = false
 87crl = /etc/ocserv/certs/crl.pem
 88#camouflage = true
 89#camouflage_secret = "secretword"
 90#camouflage_realm = "Welcome to admin panel"
 91_EOF_
 92fi
 93
 94# Create template for CA SSL cert
 95if [[ ! -e "${CERTS_DIR}"/ca.tmpl ]]; then
 96cat << _EOF_ > "${CERTS_DIR}"/ca.tmpl
 97organization = $SRV_CN
 98cn = $SRV_CA
 99serial = 001
100expiration_days = -1
101ca
102signing_key
103cert_signing_key
104crl_signing_key
105_EOF_
106fi
107
108# Create template for users SSL certs
109if [[ ! -e "${CERTS_DIR}"/users.cfg ]]; then
110cat << _EOF_ > "${CERTS_DIR}"/users.cfg
111organization = $SRV_CN
112cn = Example User
113uid = exampleuser
114expiration_days = -1
115tls_www_client
116signing_key
117encryption_key
118_EOF_
119fi
120
121# Create template for server self-signed SSL cert
122if [[ ! -e "${SSL_DIR}"/server.tmpl ]]; then
123cat << _EOF_ > "${SSL_DIR}"/server.tmpl
124cn = $SRV_CA
125dns_name = $SRV_CN
126organization = $SRV_CN
127expiration_days = -1
128signing_key
129encryption_key #only if the generated key is an RSA one
130tls_www_server
131_EOF_
132fi
133
134# Generate empty revoke file
135if [[ ! -e "${CERTS_DIR}"/crl.tmpl ]]; then
136cat << _EOF_ > "${CERTS_DIR}"/crl.tmpl
137crl_next_update = 365
138crl_number = 1
139_EOF_
140fi
141
142# Create connect script which runs for every user connection
143if [[ ! -e "${SCRIPTS_DIR}"/connect ]]; then
144cat << _EOF_ > "${SCRIPTS_DIR}"/connect && chmod +x "${SCRIPTS_DIR}"/connect
145#!/bin/bash
146
147set -Eeuo pipefail
148
149echo "\$(date) User \${USERNAME} Connected - Server: \${IP_REAL_LOCAL} VPN IP: \${IP_REMOTE}  Remote IP: \${IP_REAL} Device:\${DEVICE}"
150echo "Running iptables MASQUERADE for User \${USERNAME} connected with VPN IP \${IP_REMOTE}"
151iptables -t nat -A POSTROUTING -s "\${IP_REMOTE}"/32 -o eth0 -j MASQUERADE
152_EOF_
153fi
154
155# Create disconnect script which runs for every user disconnection
156if [[ ! -e "${SCRIPTS_DIR}"/disconnect ]]; then
157cat << _EOF_ > "${SCRIPTS_DIR}"/disconnect && chmod +x "${SCRIPTS_DIR}"/disconnect
158#!/bin/bash
159
160set -Eeuo pipefail
161
162echo "\$(date) User \${USERNAME} Disconnected - Bytes In: \${STATS_BYTES_IN} Bytes Out: \${STATS_BYTES_OUT} Duration:\${STATS_DURATION}"
163iptables -t nat -D POSTROUTING -s "\${IP_REMOTE}"/32 -o eth0 -j MASQUERADE
164_EOF_
165fi
166
167# Create script to create new users
168if [[ ! -e "${SCRIPTS_DIR}"/ocuser ]]; then
169cat << _EOF_ > "${SCRIPTS_DIR}"/ocuser && chmod +x "${SCRIPTS_DIR}"/ocuser
170#!/bin/bash
171
172set -Eeuo pipefail
173
174# Check and set script params
175if [[ \$# -eq 2 ]]; then
176    USER_UID="\$1"
177    USER_CN="\$2"
178elif [[ \$# -eq 3 ]]; then
179	if [[ "\$1" == "-A" ]]; then
180    		USER_UID="\$2"
181    		USER_CN="\$3"
182	else
183		echo "Use -A key as a first param to generate cert for IOS devices" >&2
184        exit 1
185	fi
186else
187    echo "Please run script with two params: username and 'Common Username'" >&2
188    echo "Example: ocuser john 'John Doe'" >&2
189    echo "For IOS or HarmonyOS devices add -A key as first param in command" >&2
190    echo "Example: ocuser -A steve 'Steve Jobs'" >&2
191    exit 1
192fi
193
194# Modify user cert template and generate user key, cert and protected .p12 file
195sed -i -e "s/^organization.*/organization = \$SRV_CN/" -e "s/^cn.*/cn = \$USER_CN/" -e "s/^uid.*/uid = \$USER_UID/g" "\${CERTS_DIR}"/users.cfg
196echo "\$(tr -cd "[:alnum:]" < /dev/urandom | head -c 60)" | ocpasswd -c "\${OCSERV_DIR}"/ocpasswd "\$USER_UID"
197certtool --generate-privkey --outfile "\${CERTS_DIR}"/"\${USER_UID}"-privkey.pem
198certtool --generate-certificate --load-privkey "\${CERTS_DIR}"/"\${USER_UID}"-privkey.pem --load-ca-certificate "\${CERTS_DIR}"/ca-cert.pem --load-ca-privkey "\${CERTS_DIR}"/ca-key.pem --template "\${CERTS_DIR}"/users.cfg --outfile "\${CERTS_DIR}"/"\${USER_UID}"-cert.pem
199if [[ "\$1" == "-A" ]]; then
200	sleep 1 && certtool --to-p12 --load-certificate "\${CERTS_DIR}"/"\${USER_UID}"-cert.pem --load-privkey "\${CERTS_DIR}"/"\${USER_UID}"-privkey.pem --pkcs-cipher 3des-pkcs12 --hash SHA1 --outder --outfile "\${SECRETS_DIR}"/"\${USER_UID}".p12
201else
202	sleep 1 && certtool --load-certificate "\${CERTS_DIR}"/"\${USER_UID}"-cert.pem --load-privkey "\${CERTS_DIR}"/"\${USER_UID}"-privkey.pem --pkcs-cipher aes-256 --to-p12 --outder --outfile "\${SECRETS_DIR}"/"\${USER_UID}".p12
203fi
204_EOF_
205fi
206
207# Add revoke script
208if [[ ! -e "${SCRIPTS_DIR}"/ocrevoke ]]; then
209cat << _EOF_ > "${SCRIPTS_DIR}"/ocrevoke && chmod +x "${SCRIPTS_DIR}"/ocrevoke
210#!/bin/bash
211
212set -Eeuo pipefail
213
214if [[ ! -e "\${CERTS_DIR}"/crl.tmpl ]]; then
215cat << __EOF__ > "\${CERTS_DIR}"/crl.tmpl
216crl_next_update = 365
217crl_number = 1
218__EOF__
219fi
220
221if [[ \$# -eq 1 ]]; then
222    if [[ "\$1" == "HELP" ]]; then
223        echo "Usage:
224        CMD to revoke cert of some user: ocrevoke <exist_user>
225        CMD to apply current revoked.pem: ocrevoke RELOAD
226        CMD to reset all revokes: ocrevoke RESET
227        CMD to print this help: ocrevoke HELP"
228    elif [[ "\$1" == "RESET" ]]; then
229        certtool --generate-crl --load-ca-privkey "\${CERTS_DIR}"/ca-key.pem --load-ca-certificate "\${CERTS_DIR}"/ca-cert.pem --template "\${CERTS_DIR}"/crl.tmpl --outfile "\${CERTS_DIR}"/crl.pem
230        occtl reload
231    elif [[ "\$1" == "RELOAD" ]]; then
232        certtool --generate-crl --load-ca-privkey "\${CERTS_DIR}"/ca-key.pem --load-ca-certificate "\${CERTS_DIR}"/ca-cert.pem --load-certificate "\${CERTS_DIR}"/revoked.pem --template "\${CERTS_DIR}"/crl.tmpl --outfile "\${CERTS_DIR}"/crl.pem
233    else
234        USER_UID="\$1"
235        cat "\${CERTS_DIR}"/"\${USER_UID}"-cert.pem >> "\${CERTS_DIR}"/revoked.pem
236        certtool --generate-crl --load-ca-privkey "\${CERTS_DIR}"/ca-key.pem --load-ca-certificate "\${CERTS_DIR}"/ca-cert.pem --load-certificate "\${CERTS_DIR}"/revoked.pem --template "\${CERTS_DIR}"/crl.tmpl --outfile "\${CERTS_DIR}"/crl.pem
237        occtl reload
238    fi
239else
240    echo "Usage:
241    CMD to revoke cert of some user: ocrevoke <exist_user>
242    CMD to apply current revoked.pem: ocrevoke RELOAD
243    CMD to reset all revokes: ocrevoke RESET
244    CMD to print this help: ocrevoke HELP"
245fi
246_EOF_
247fi
248

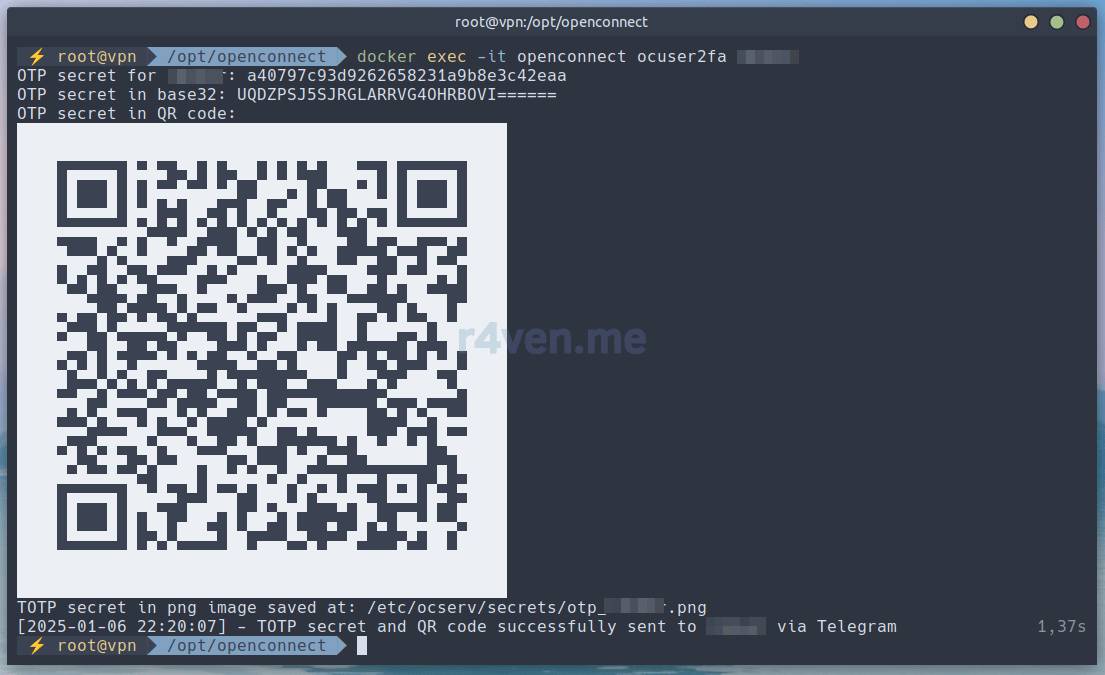

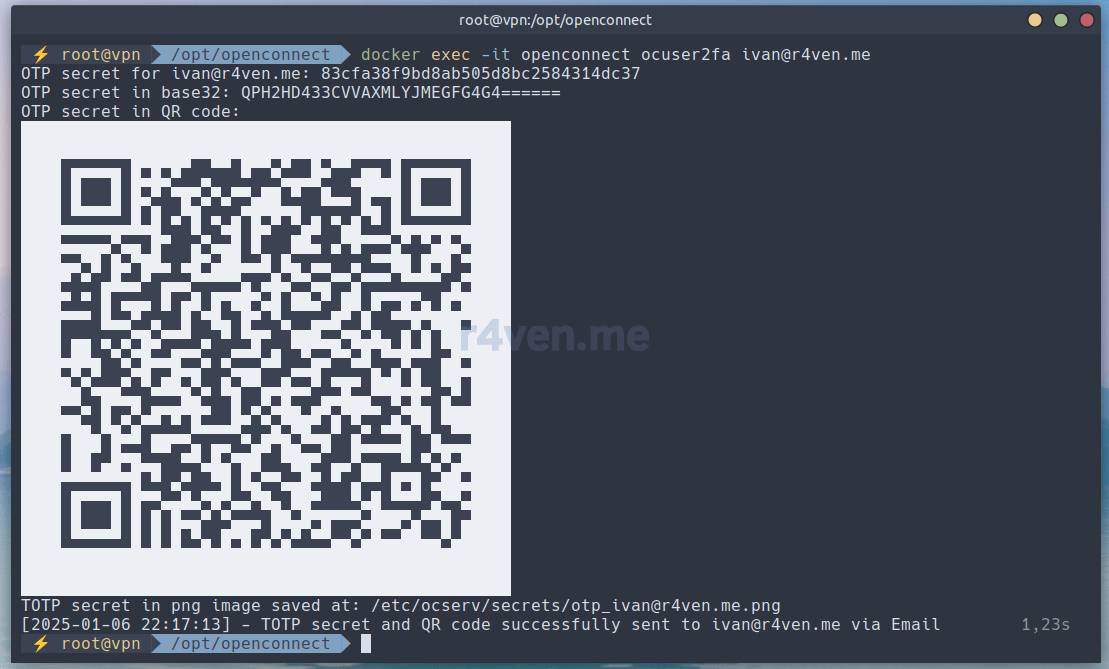

249# Add ocuser2fa script
250if [[ "$OTP_ENABLE" == "true" && ! -e "${SCRIPTS_DIR}"/ocuser2fa ]]; then
251cat << _EOF_ > "${SCRIPTS_DIR}"/ocuser2fa && chmod +x "${SCRIPTS_DIR}"/ocuser2fa
252#!/bin/bash
253
254set -Eeuo pipefail
255
256if [[ \$# -eq 1 ]]; then
257    USER_ID="\$1"
258    OTP_SECRET="\$(head -c 16 /dev/urandom | xxd -c 256 -ps)"
259    OTP_SECRET_BASE32="\$(echo 0x"\${OTP_SECRET}" | xxd -r -c 256 | base32)"
260    OTP_SECRET_QR="otpauth://totp/\$USER_ID?secret=\$OTP_SECRET_BASE32&issuer=$SRV_CA&algorithm=SHA1&digits=6&period=30"
261
262    if [[ ! -e "\${SECRETS_DIR}"/users.oath ]] || ! grep -qP "(?<!\\S)\${USER_ID}(?!\\S)" "\${SECRETS_DIR}"/users.oath; then
263        echo "HOTP/T30 \$USER_ID - \$OTP_SECRET" >> "\${SECRETS_DIR}"/users.oath
264        echo "OTP secret for \$USER_ID: \$OTP_SECRET"
265        echo "OTP secret in base32: \$OTP_SECRET_BASE32"
266        echo "OTP secret in QR code:"
267        qrencode -t ANSIUTF8 "\$OTP_SECRET_QR"
268        qrencode "\$OTP_SECRET_QR" -s 10 -o "\${SECRETS_DIR}"/otp_"\${USER_ID}".png
269        echo "TOTP secret in png image saved at: \${SECRETS_DIR}/otp_\${USER_ID}.png"
270
271        send_qr_by_email() {
272            EMAIL_REGEX="^[a-zA-Z0-9._-]+@[a-zA-Z0-9.-]+\\.[a-zA-Z]{2,}$"
273
274            if [[ \$USER_ID =~ \$EMAIL_REGEX ]]; then
275                cat << EOF | msmtp --file="\${SCRIPTS_DIR}"/msmtprc "\$USER_ID"
276Subject: TOTP QR code for OpenConnect auth
277MIME-Version: 1.0
278Content-Type: multipart/mixed; boundary="boundary"
279
280--boundary
281Content-Type: text/plain
282
283TOTP secret for OpenConnect (base32):
284\$OTP_SECRET_BASE32
285
286--boundary
287Content-Type: image/png; name="file.png"
288Content-Transfer-Encoding: base64
289Content-Disposition: attachment; filename="file.png"
290
291\$(base64 "\${SECRETS_DIR}"/otp_"\${USER_ID}".png)
292--boundary--
293EOF
294                echo "[\$(date '+%F %T')] - TOTP secret and QR code successfully sent to \$USER_ID via Email" | tee -a "\${OCSERV_DIR}"/pam.log
295            else
296                return 0
297            fi
298        }
299
300        if [[ "\$OTP_SEND_BY_EMAIL" == "true" ]]; then send_qr_by_email; fi
301

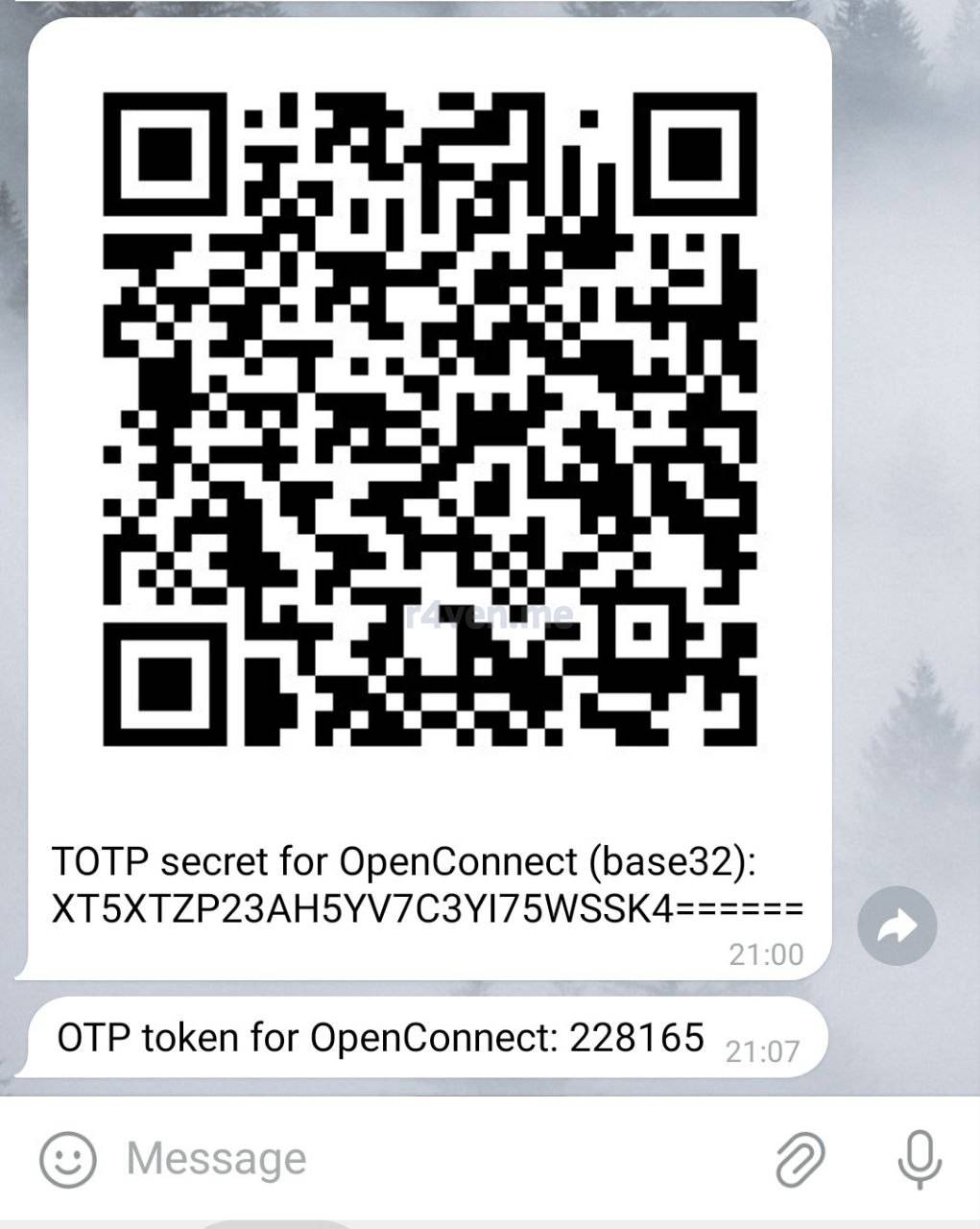

302        send_qr_by_telegram() {
303            TG_REGEX="^[a-zA-Z][a-zA-Z0-9_]{4,31}\$"
304
305            if [[ \$USER_ID =~ \$TG_REGEX ]]; then
306                TG_MESSAGE="TOTP secret for OpenConnect (base32):
307\$OTP_SECRET_BASE32"
308                TG_USER_FILE="\${SCRIPTS_DIR}/tg_users.txt"
309
310                if grep -qP "(?<!\\S)\${USER_ID}(?!\\S)" "\$TG_USER_FILE" 2> /dev/null; then
311                    TG_CHAT_ID=\$(grep -P "(?<!\\S)\${USER_ID}(?!\\S)" "\$TG_USER_FILE" | awk '{print \$1}')
312                else
313                    TG_RESPONSE="\$(curl -s "https://api.telegram.org/bot\$TG_TOKEN/getUpdates")"
314                    TG_CHAT_ID=\$(echo "\$TG_RESPONSE" | jq -r --arg USERNAME "\$USER_ID" '.result[] | select(.message.from.username == \$USERNAME) | .message.chat.id')
315
316                    if [[ -z "\$TG_CHAT_ID" ]]; then
317                        echo "[\$(date '+%F %T')] - User was not found or did not interact with the bot" >> "\${OCSERV_DIR}"/pam.log
318                        return 0
319                    fi
320                    echo "\$TG_CHAT_ID \$USER_ID" >> "\$TG_USER_FILE"
321                fi
322
323                curl -s -X POST "https://api.telegram.org/bot\$TG_TOKEN/sendPhoto" \\
324                    -H "Content-Type: multipart/form-data" \\
325                    -F "chat_id=\$TG_CHAT_ID" \\
326                    -F "photo=@\${SECRETS_DIR}/otp_\${USER_ID}.png" \\
327                    -F "caption=\$TG_MESSAGE" > /dev/null 2>> "\${OCSERV_DIR}"/pam.log
328
329                echo "[\$(date '+%F %T')] - TOTP secret and QR code successfully sent to \$USER_ID via Telegram" | tee -a "\${OCSERV_DIR}"/pam.log
330            fi
331        }
332
333        if [[ "\$OTP_SEND_BY_TELEGRAM" == "true" ]]; then send_qr_by_telegram; fi
334
335    else
336        echo "OTP token already exists for \$USER_ID in \${SECRETS_DIR}/users.oath"
337        exit 1
338    fi
339else
340    echo "Usage: \$(basename "\$0") <user_id>"
341    exit 1
342fi
343_EOF_
344fi
345
346if [[ "$OTP_ENABLE" == "true" && ! -e "${SCRIPTS_DIR}"/otp_sender ]]; then
347cat << _EOF_ > "${SCRIPTS_DIR}"/otp_sender && chmod +x "${SCRIPTS_DIR}"/otp_sender
348#!/bin/bash
349
350set -Eeuo pipefail
351
352OCSERV_DIR="$OCSERV_DIR"
353SECRETS_DIR="$SECRETS_DIR"
354SCRIPTS_DIR="$SCRIPTS_DIR"
355OTP_SEND_BY_EMAIL="$OTP_SEND_BY_EMAIL"
356OTP_SEND_BY_TELEGRAM="$OTP_SEND_BY_TELEGRAM"
357TG_TOKEN="$TG_TOKEN"
358
359echo "[\$(date '+%F %T')] - PAM user \$PAM_USER is trying to connect to ocserv" >> "\${OCSERV_DIR}"/pam.log
360
361otp_sender_by_email() {
362    EMAIL_REGEX="^[a-zA-Z0-9._-]+@[a-zA-Z0-9.-]+\\.[a-zA-Z]{2,}$"
363    if [[ \$PAM_USER =~ \$EMAIL_REGEX ]]; then true; else return 0; fi
364
365    if [[ -e "\${SECRETS_DIR}"/users.oath ]] && grep -qP "(?<!\\S)\${PAM_USER}(?!\\S)" "\${SECRETS_DIR}"/users.oath; then
366        OTP_TOKEN="\$(oathtool --totp=SHA1 --time-step-size=30 --digits=6 \$(grep -P "(?<!\\S)\${PAM_USER}(?!\\S)" \${SECRETS_DIR}/users.oath | awk '{print \$4}'))"
367

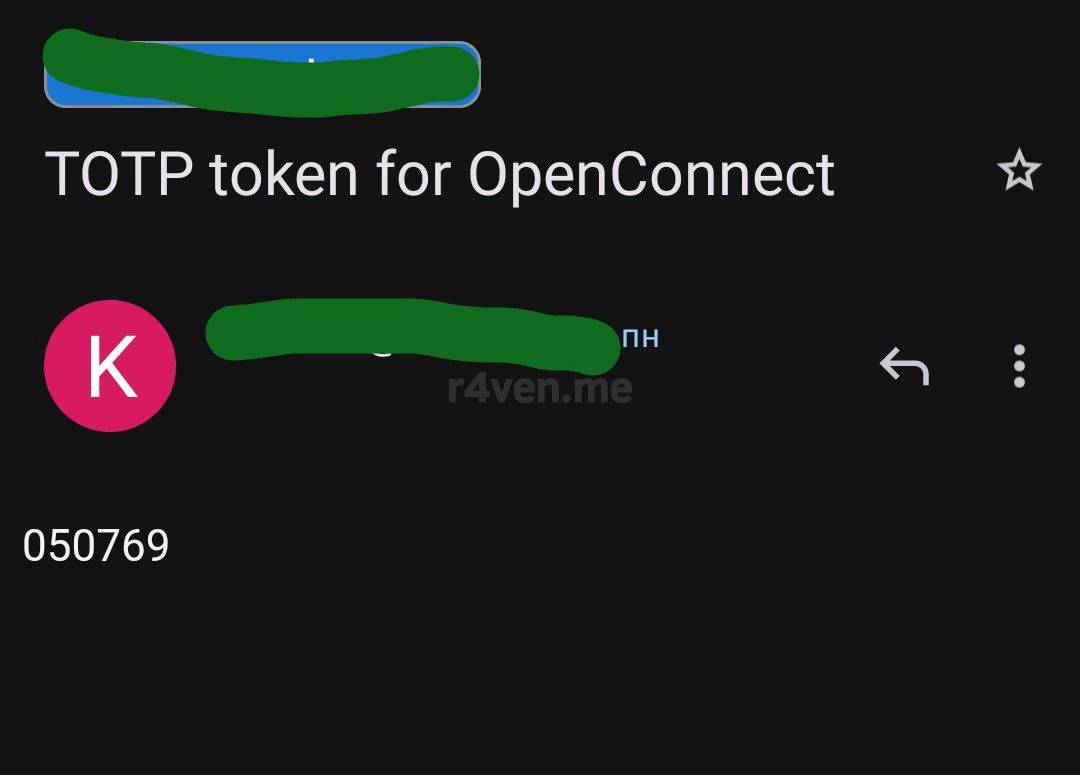

368        echo -e "Subject: TOTP token for OpenConnect\n\n\${OTP_TOKEN}" | msmtp --file="\${SCRIPTS_DIR}"/msmtprc "\$PAM_USER"
369        echo "[\$(date '+%F %T')] - TOTP token successfully sent to \$PAM_USER" >> "\${OCSERV_DIR}"/pam.log
370    fi
371}
372
373otp_sender_by_telegram() {
374    TG_REGEX="^[a-zA-Z][a-zA-Z0-9_]{4,31}\$"
375    if [[ \$PAM_USER =~ \$TG_REGEX ]]; then true; else return 0; fi
376
377    if grep -qP "(?<!\\S)\${PAM_USER}(?!\\S)" "\${SECRETS_DIR}"/users.oath 2> /dev/null; then
378        OTP_TOKEN="\$(oathtool --totp=SHA1 --time-step-size=30 --digits=6 \$(grep -P "(?<!\\S)\${PAM_USER}(?!\\S)" \${SECRETS_DIR}/users.oath | awk '{print \$4}'))"
379        TG_MESSAGE="TOTP token for OpenConnect: \$OTP_TOKEN"
380        TG_USER_FILE="\${SCRIPTS_DIR}/tg_users.txt"
381
382        if grep -qP "(?<!\\S)\$PAM_USER(?!\\S)" "\$TG_USER_FILE"; then
383            TG_CHAT_ID=\$(grep -P "(?<!\\S)\${PAM_USER}(?!\\S)" "\$TG_USER_FILE" | awk '{print \$1}')
384        else
385            TG_RESPONSE="\$(curl -s "https://api.telegram.org/bot\$TG_TOKEN/getUpdates")"
386            TG_CHAT_ID=\$(echo "\$TG_RESPONSE" | jq -r --arg USERNAME "\$PAM_USER" '.result[] | select(.message.from.username == \$USERNAME) | .message.chat.id')
387
388            if [[ -z "\$TG_CHAT_ID" ]]; then
389                echo "[\$(date '+%F %T')] - User was not found or did not interact with the bot" >> "\${OCSERV_DIR}"/pam.log
390                return 0
391            fi
392            echo "\$TG_CHAT_ID \$PAM_USER" >> "\$TG_USER_FILE"
393        fi
394
395        curl -s -X POST "https://api.telegram.org/bot\$TG_TOKEN/sendMessage" -d "chat_id=\$TG_CHAT_ID" -d "text=\$TG_MESSAGE" 2>> "\${OCSERV_DIR}"/pam.log
396        echo "[\$(date '+%F %T')] - TOTP token successfully sent to \$PAM_USER" >> "\${OCSERV_DIR}"/pam.log
397    fi
398}
399
400if [[ "\$OTP_SEND_BY_EMAIL" == "true" ]]; then otp_sender_by_email; fi &
401
402if [[ "\$OTP_SEND_BY_TELEGRAM" == "true" ]]; then otp_sender_by_telegram; fi &
403_EOF_
404elif [[ "$OTP_ENABLE" == "true" && -e "${SCRIPTS_DIR}"/otp_sender ]]; then
405    sed -i "s|OCSERV_DIR=.*|OCSERV_DIR=\"$OCSERV_DIR\"|" "${SCRIPTS_DIR}"/otp_sender
406    sed -i "s|SECRETS_DIR=.*|SECRETS_DIR=\"$SECRETS_DIR\"|" "${SCRIPTS_DIR}"/otp_sender
407    sed -i "s|SCRIPTS_DIR=.*|SCRIPTS_DIR=\"$SCRIPTS_DIR\"|" "${SCRIPTS_DIR}"/otp_sender
408    sed -i "s|OTP_SEND_BY_EMAIL=.*|OTP_SEND_BY_EMAIL=\"$OTP_SEND_BY_EMAIL\"|" "${SCRIPTS_DIR}"/otp_sender
409    sed -i "s|OTP_SEND_BY_TELEGRAM=.*|OTP_SEND_BY_TELEGRAM=\"$OTP_SEND_BY_TELEGRAM\"|" "${SCRIPTS_DIR}"/otp_sender
410    sed -i "s|TG_TOKEN=.*|TG_TOKEN=\"$TG_TOKEN\"|" "${SCRIPTS_DIR}"/otp_sender
411fi
412
413# Add msmtprc config
414if [[ "$OTP_ENABLE" == "true" && "$OTP_SEND_BY_EMAIL" == "true" && ! -e "${OCSERV_DIR}"/msmtprc ]]; then
415cat << _EOF_ > "${SCRIPTS_DIR}"/msmtprc && chmod 400 "${SCRIPTS_DIR}"/msmtprc
416account default
417host $MSMTP_HOST
418port $MSMTP_PORT
419auth on
420user $MSMTP_USER
421password $MSMTP_PASSWORD
422from $MSMTP_FROM
423tls on
424tls_starttls off
425logfile $OCSERV_DIR/pam.log
426_EOF_
427fi
428
429# Config OTP with PAM
430pam_otp() {
431    if [[ $OTP_ENABLE == "true" ]]; then
432        until [[ -e /etc/pam.d/ocserv ]]; do sleep 5; done
433        if grep -q 'otp_sender' /etc/pam.d/ocserv && grep -q 'users.oath' /etc/pam.d/ocserv; then return 0; fi
434        sleep 3
435        echo "auth optional pam_exec.so ${SCRIPTS_DIR}/otp_sender" >> /etc/pam.d/ocserv
436        echo "auth requisite pam_oath.so debug usersfile=${SECRETS_DIR}/users.oath window=20" >> /etc/pam.d/ocserv
437    fi
438}
439
440# Start ocserv service
441if [[ -e "${SSL_DIR}"/live/"${SRV_CN}"/privkey.pem && -e "${SSL_DIR}"/live/"${SRV_CN}"/fullchain.pem && -e "${CERTS_DIR}"/ca-key.pem && -e "${CERTS_DIR}"/ca-cert.pem ]]; then
442    pam_otp &
443    echo "Starting OpenConnect Server"
444    exec "$@" || { echo "Starting failed" >&2; exit 1; }
445else
446    # Server certificates generation
447    certtool --generate-privkey --outfile "${CERTS_DIR}"/ca-key.pem
448    certtool --generate-self-signed --load-privkey "${CERTS_DIR}"/ca-key.pem --template "${CERTS_DIR}"/ca.tmpl --outfile "${CERTS_DIR}"/ca-cert.pem
449    certtool --generate-crl --load-ca-privkey "${CERTS_DIR}"/ca-key.pem --load-ca-certificate "${CERTS_DIR}"/ca-cert.pem --template "${CERTS_DIR}"/crl.tmpl --outfile "${CERTS_DIR}"/crl.pem
450    if [[ ! -e "${SSL_DIR}"/live/"${SRV_CN}"/privkey.pem && ! -e "${SSL_DIR}"/live/"${SRV_CN}"/fullchain.pem ]]; then
451        certtool --generate-privkey --outfile "${SSL_DIR}"/live/"${SRV_CN}"/privkey.pem
452        certtool --generate-certificate --load-privkey "${SSL_DIR}"/live/"${SRV_CN}"/privkey.pem --load-ca-certificate "${CERTS_DIR}"/ca-cert.pem --load-ca-privkey "${CERTS_DIR}"/ca-key.pem --template "${SSL_DIR}"/server.tmpl --outfile "${SSL_DIR}"/live/"${SRV_CN}"/fullchain.pem
453    fi
454
455    pam_otp &
456    echo "Starting OpenConnect Server"
457    exec "$@" || { echo "Starting failed" >&2; exit 1; }
458fi

 1[Unit]
 2Description=OpenConnect VPN service
 3Requires=docker.service
 4After=docker.service
 5
 6[Service]
 7Restart=on-failure
 8RestartSec=5
 9WorkingDirectory=/opt/openconnect
10ExecStart=/usr/bin/docker compose up
11ExecStop=/usr/bin/docker compose down
12
13[Install]
14WantedBy=multi-user.target

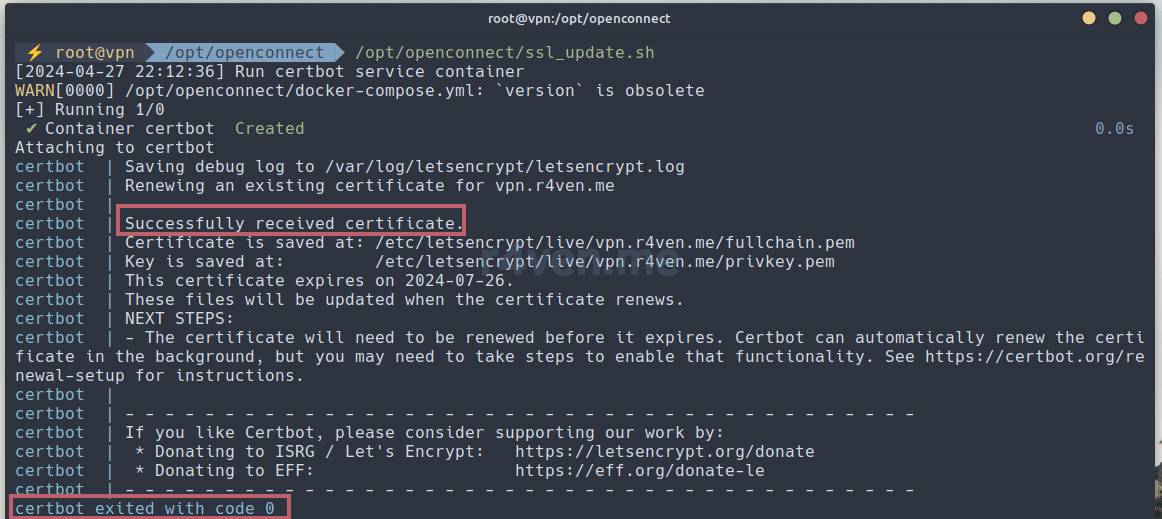

 1#!/usr/bin/env bash
 2
 3set -e
 4
 5WORK_DIR="/opt/openconnect"
 6CONTAINER_NAME="openconnect"
 7
 8to_log () {
 9    local text="$1"
10    echo "[$(date '+%F %T')] ${text}"
11}
12
13cd "$WORK_DIR" || exit 1
14
15if [[ -r ./docker-compose.yml ]]; then
16    to_log "Run certbot service container"
17    docker compose up certbot
18    sleep 3
19    to_log "Reload ocserv config"
20    docker exec "$CONTAINER_NAME" occtl reload
21    to_log "Delete all unused docker images"

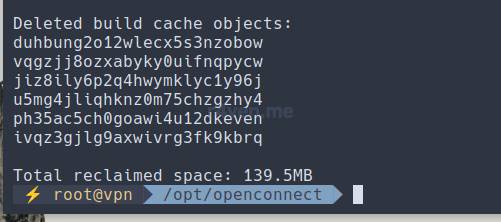

22    docker system prune -af
23fi

vim .env

:wq

docker compose up -d && docker compose logs -f

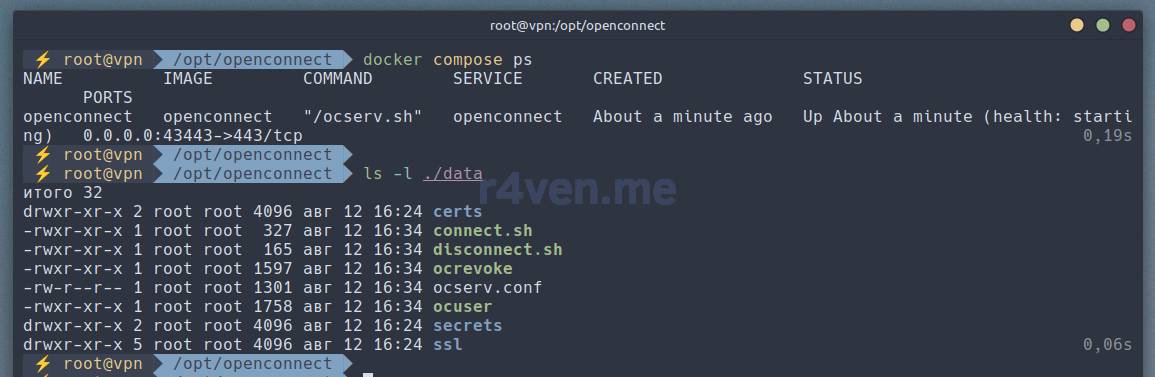

docker compose ps

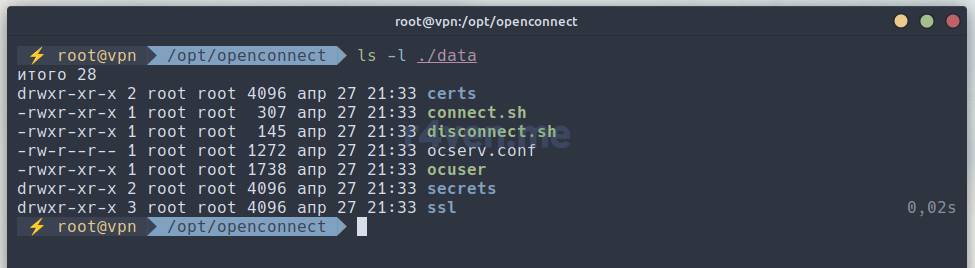

ls -l ./data

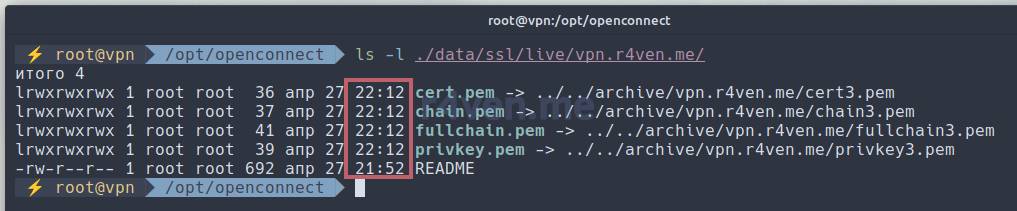

ls -l ./data/ssl/live/vpn.r4ven.me/

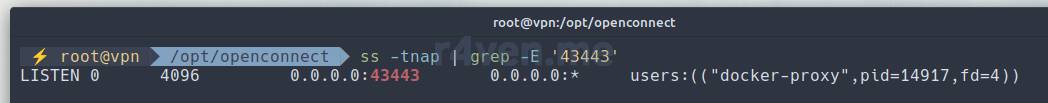

ss -tnap | grep -E '43443'

docker exec -it openconnect ocuser ivan 'Ivan Cherniy'

ls -l ./data/secrets

docker exec -it openconnect ocuser -A steve 'Steve Jobs'

ls -l ./data/secrets

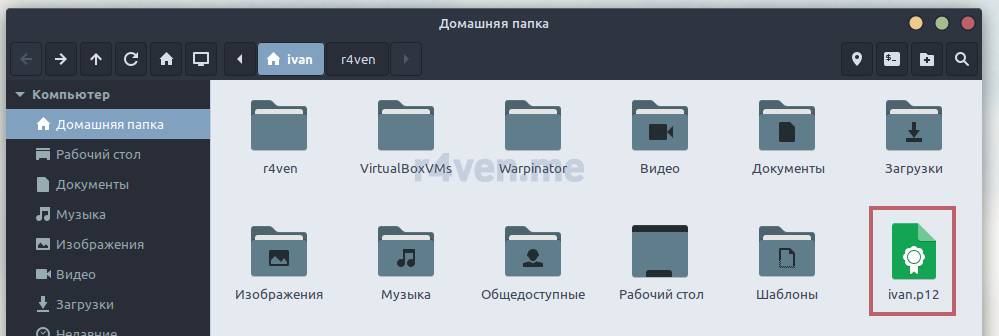

cp ./data/secrets/ivan.p12 /tmp

scp vpn.r4ven.me:/tmp/ivan.p12 .

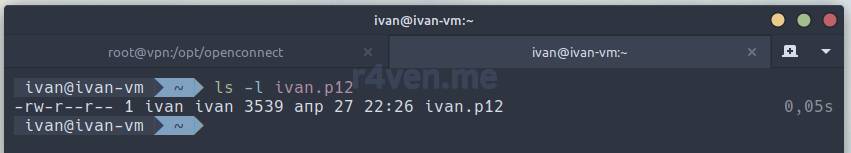

ls -l ivan.p12

mkdir ./data/config-per-user

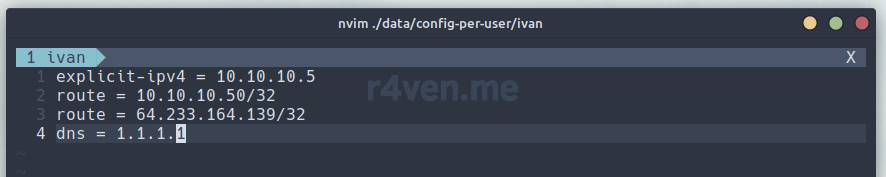

vim ./data/config-per-user/ivan

explicit-ipv4 = 10.10.10.5
route = 10.10.10.50/32
route = 64.233.164.139/32
dns = 1.1.1.1

docker exec -it openconnect occtl reload

cp ./openconnect.service /etc/systemd/system/

systemctl daemon-reload

docker compose down

systemctl enable --now openconnect

systemctl status openconnect

docker compose ps

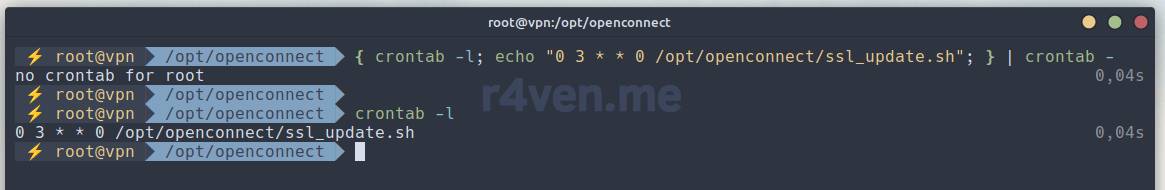

{ crontab -l; echo "0 3 * * 0 /opt/openconnect/ssl_update.sh"; } | crontab -

crontab -l

/opt/openconnect/ssl_update.sh

ls -l ./data/ssl/live/vpn.r4ven.me/

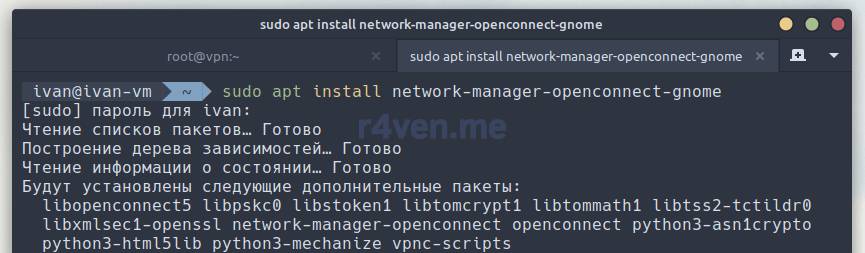

sudo apt update && sudo apt install network-manager-openconnect-gnome

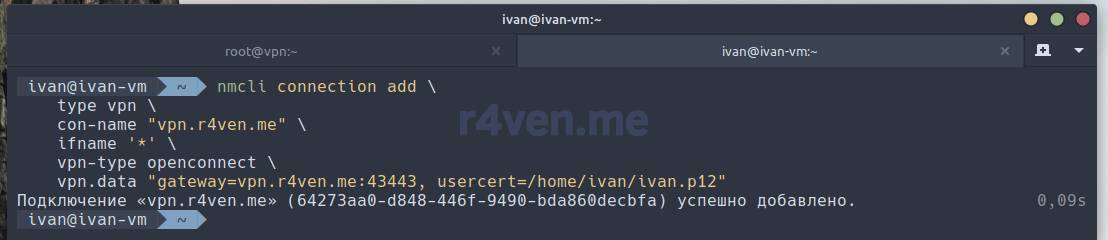

nmcli connection add \
    type vpn \
    con-name "vpn.r4ven.me" \
    ifname '*' \
    vpn-type openconnect \
    vpn.data "gateway=vpn.r4ven.me:43443, usercert=/home/ivan/ivan.p12"

nmcli connection up vpn.r4ven.me

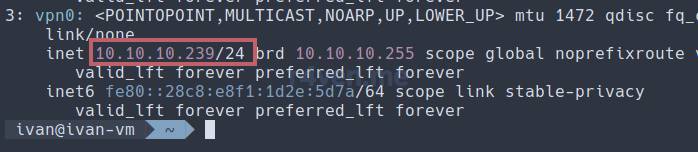

ip -c address

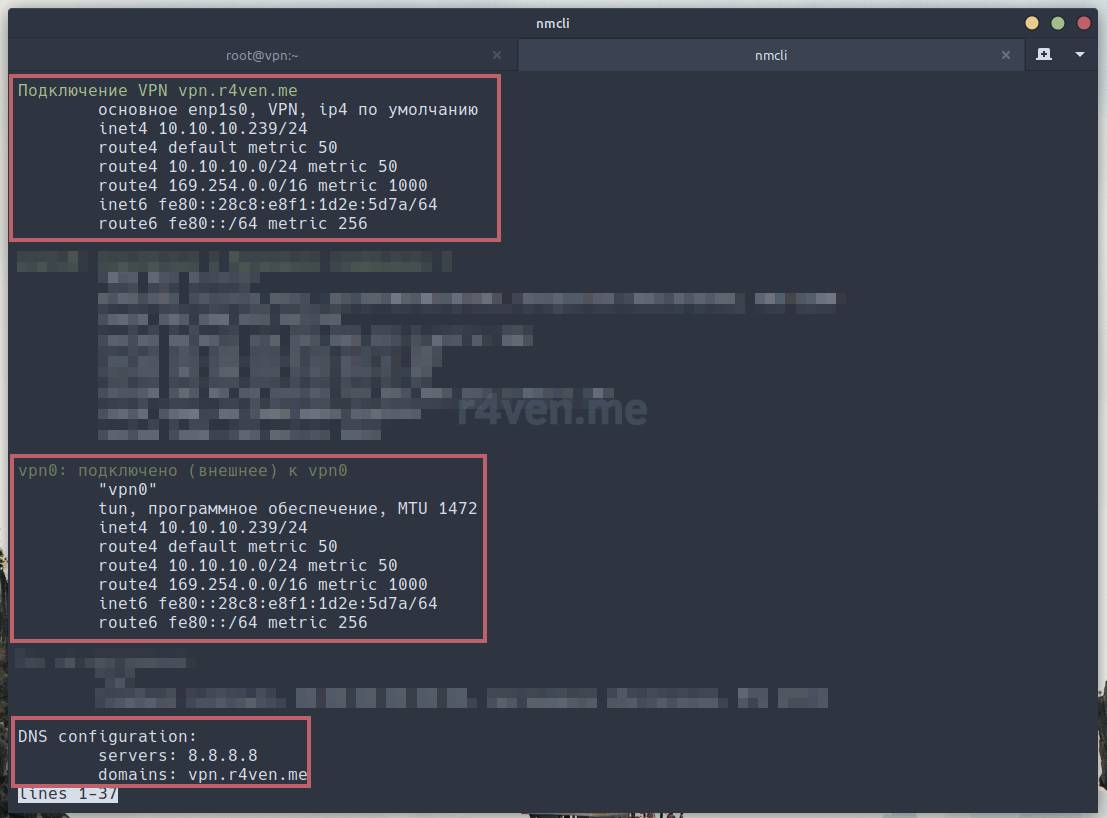

nmcli

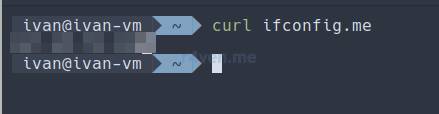

curl ifconfig.me

sudo apt update && sudo apt install openconnect

# если с доменом

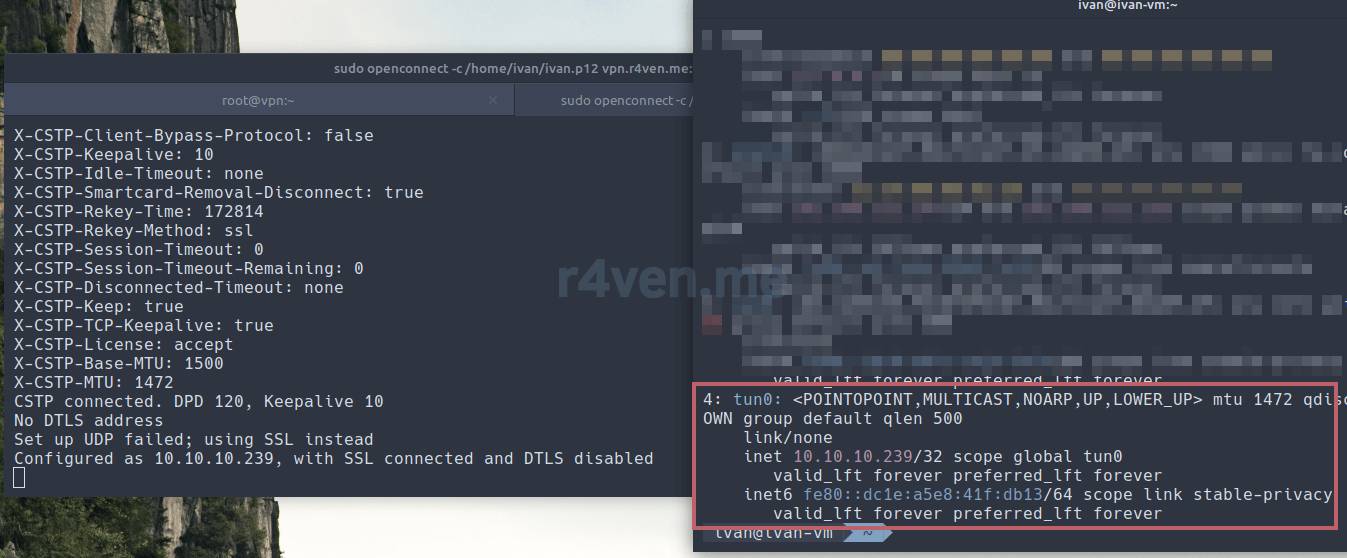

sudo openconnect -c /home/ivan/ivan.p12 vpn.r4ven.me:43443 <<< $(echo "password"$'\n')

# если без домена (с доп. подтверждением самоподписанного сертификата)
sudo openconnect -c /home/ivan/ivan.p12 12.345.67.89:43443 <<< $(echo "password"$'\n'yes$'\n')

ip rule add table 128 from <public-ip>
ip route add table 128 to <public_ip_subnet> dev <ineteface_name>
ip route add table 128 default via <gateway>

# отозвать сертификат пользователя ivan
docker exec -it openconnect ocrevoke ivan

# перечитать черный список пользователей
docker exec -it openconnect ocrevoke RELOAD

# удалить всех из черного списка
docker exec -it openconnect ocrevoke RESET

crl = /etc/ocserv/certs/crl.pem

cat ./data/certs/ivan-cert.pem >> ./data/certs/revoked.pem

docker exec -it openconnect certtool --generate-crl --load-ca-privkey /etc/ocserv/certs/ca-key.pem --load-ca-certificate /etc/ocserv/certs/ca-cert.pem --load-certificate /etc/ocserv/certs/revoked.pem --template /etc/ocserv/certs/crl.tmpl --outfile /etc/ocserv/certs/crl.pem

docker exec -it openconnect occtl reload

docker exec -it openconnect certtool --generate-crl --load-ca-privkey /etc/ocserv/certs/ca-key.pem --load-ca-certificate /etc/ocserv/certs/ca-cert.pem --template /etc/ocserv/certs/crl.tmpl --outfile /etc/ocserv/certs/crl.pem

docker exec -it openconnect occtl reload

enable-auth = "plain[passwd=/etc/ocserv/ocpasswd]"

docker compose restart openconnect

docker exec -it openconnect ocpasswd exampleuser

OTP_ENABLE="true"

auth = "plain[passwd=/etc/ocserv/ocpasswd,otp=/etc/ocserv/secrets/users.oath]"

docker exec -it openconnect ocpasswd ivan

auth = "pam"
